NY Vir Keplerian Modeling

Demonstrates fitting two Keplerian orbits.

%load_ext autoreload
%autoreload 2

The autoreload extension is already loaded. To reload it, use:
  %reload_ext autoreload

from ocpy.data import Data

data = Data.from_file("../ny_vir_minima.xlsx")
data = data.fill_errors(0.0001).calculate_weights()

t0 = 2453174.442769
period = 0.1010159690

oc = data.calculate_oc(
    reference_minimum=t0,
    reference_period=period,
    model_type="lmfit"
)

from ocpy.oc import Linear, Quadratic, Keplerian, Parameter

# 1) Linear (y = a*x + b)
lin = Linear(
    a=Parameter(value=0.0,   std=2e-5,  min=-1e-3,  max=1e-3,  fixed=False),
    b=Parameter(value=0.0,   std=2e-3,  min=-0.1,   max=0.1,   fixed=False),
)

# 2) Quadratic (q * x^2)
quad = Quadratic(
    q=Parameter(value=0.0,   std=5e-10, min=-1e-8,  max=1e-8,  fixed=False),
)

# 3) Keplerian component #1 (approx 80k epoch)
lite1 = Keplerian(
    P     = Parameter(value=80000,  std=8_000,  min=30_000,  max=150_000, fixed=False),
    T0    = Parameter(value=60000,  std=5_000,                          fixed=False),
    amp   = Parameter(value=2.0e-4, std=1.0e-4, min=0.0,    max=1.0e-3,  fixed=False),
    e     = Parameter(value=0.0,    fixed=True),
    omega = Parameter(value=0.0,    fixed=True),
)

# 4) Keplerian component #2 (approx 40k epoch)
lite2 = Keplerian(
    P     = Parameter(value=40000,  std=6_000,  min=10_000,  max=100_000, fixed=False),
    T0    = Parameter(value=30000,  std=5_000,                          fixed=False),
    amp   = Parameter(value=5.0e-5, std=2.5e-5, min=0.0,    max=5.0e-4,  fixed=False),
    e     = Parameter(value=0.0,    fixed=True),
    omega = Parameter(value=0.0,    fixed=True),
)

models = [lin, quad, lite1, lite2]

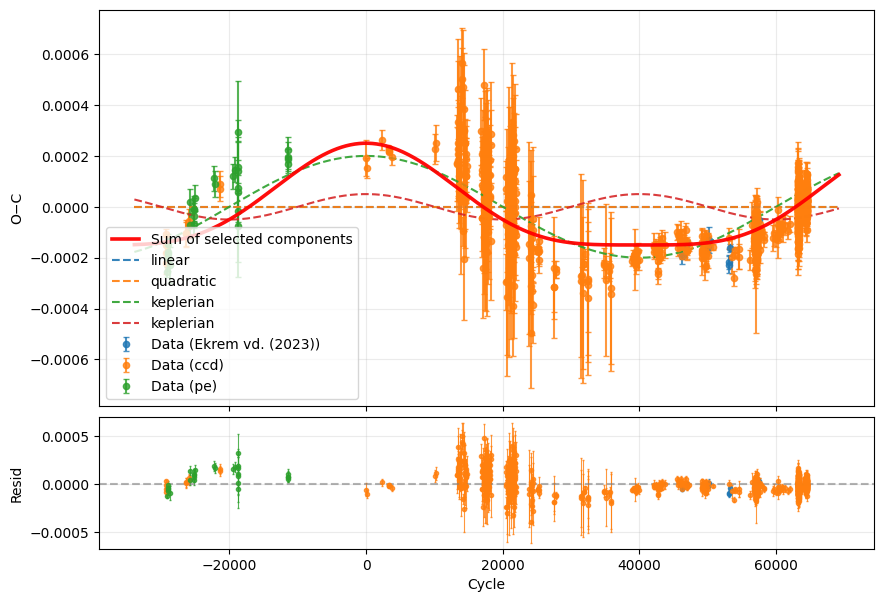

oc.plot(model=models)

<Axes: ylabel='O−C'>

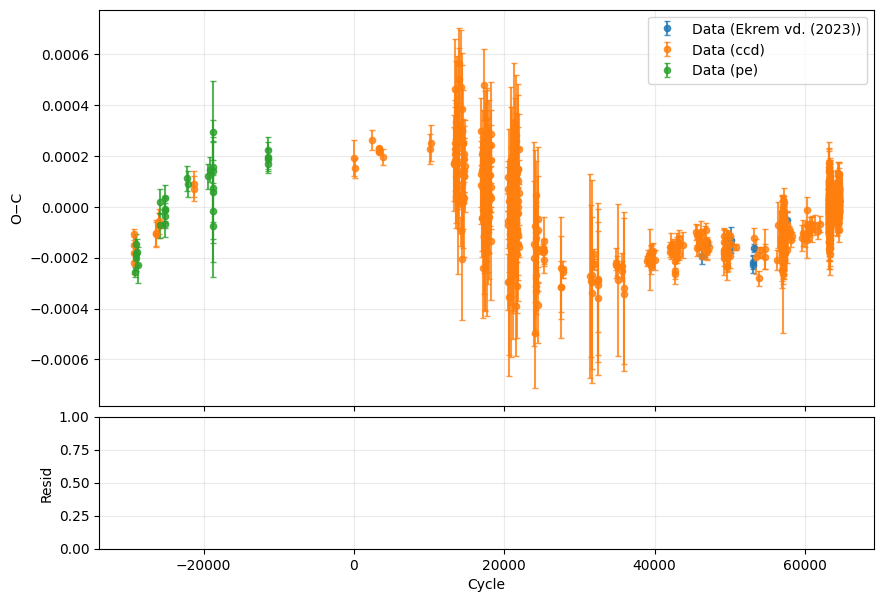

oc.plot({lin, quad, lite1, lite2})

<Axes: ylabel='O−C'>

res = oc.fit(models)

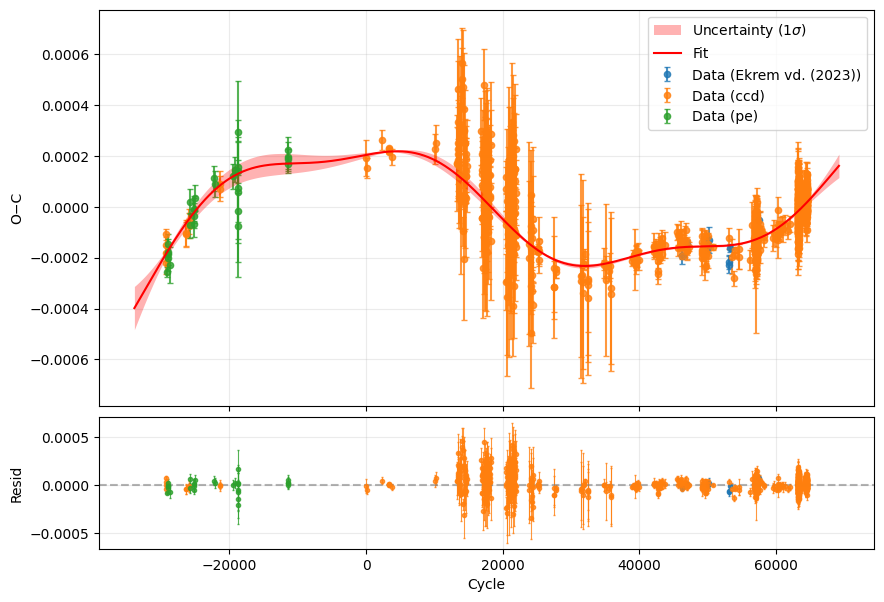

oc.plot(res)

<Axes: ylabel='O−C'>
